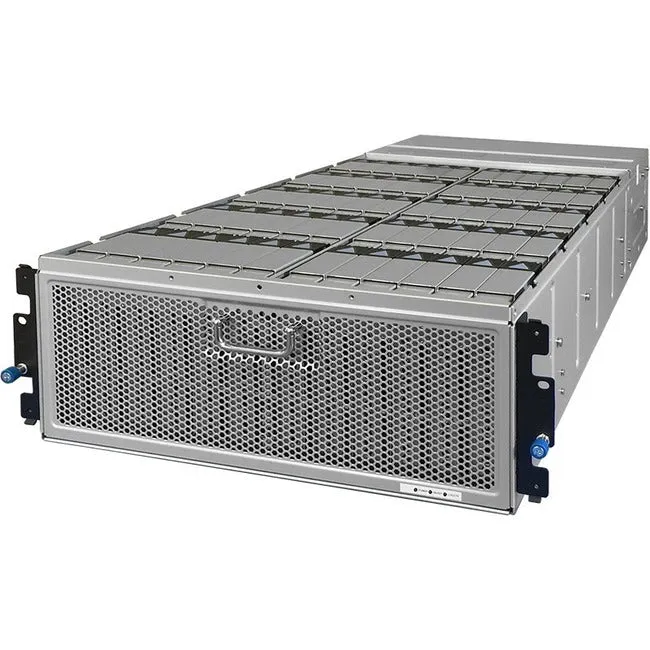

HGST Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60 Storage Enclosure. This high-density, scalable, and cost-effective design Includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure and offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. Optimized to provide a dense solution with HA capabilities, while maintaining a low power profile, you can trust the 4U60 Storage Enclosure to deliver the value you need for your data center.
- Optional cable management arm eliminates tangled cables during servicing of hot-swappable CRUs
- Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
- Fully compliant with SAS 3.0 specification for operation up to 12Gbps
- QSFP to QSFP cables for daisy-chaining*
- QSFP to HD mini SAS cables for host
- Host connectivity 2 x SAS QSFP receptacles per IO Module; optional connectivity cables are available
- Available with SAS drives for HA applications or with SATA drives for cost-optimized applications
- Available option to configure up to 8 Ultrastar SSDs to create separate performance tiers within the enclosure
- Available with 512e or 4Kn sector size (by part number)
- Up to 60 integrated Ultrastar® drive modules
Product Type: Drive Enclosure
Cooling Fan: Yes
Rack Height: 4U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Name: 4U60 Storage Enclosure
Manufacturer Part Number: 1ES0095
Manufacturer Website Address:
Limited Warranty: 5 Year
Weight (Approximate): 198 lb
