DESCRIPTION

Convenience in an Audio Player

With the iDAP6 you can get easy and quick access to portable devices like SD card and USB thumb drive OTG with 1A current. It can handle 2.5" HDD directly.

Connect Anywhere, Any time

You can get LAN connection through WiFi or with the Ethernet cable enable network-based applications. Samba the file/music sharing with NAS or PCs in LAN. Pushed content from DLNA library (DLNA Render) Pushed music from Apple devices (Airplay)

Extraordinary Music Player

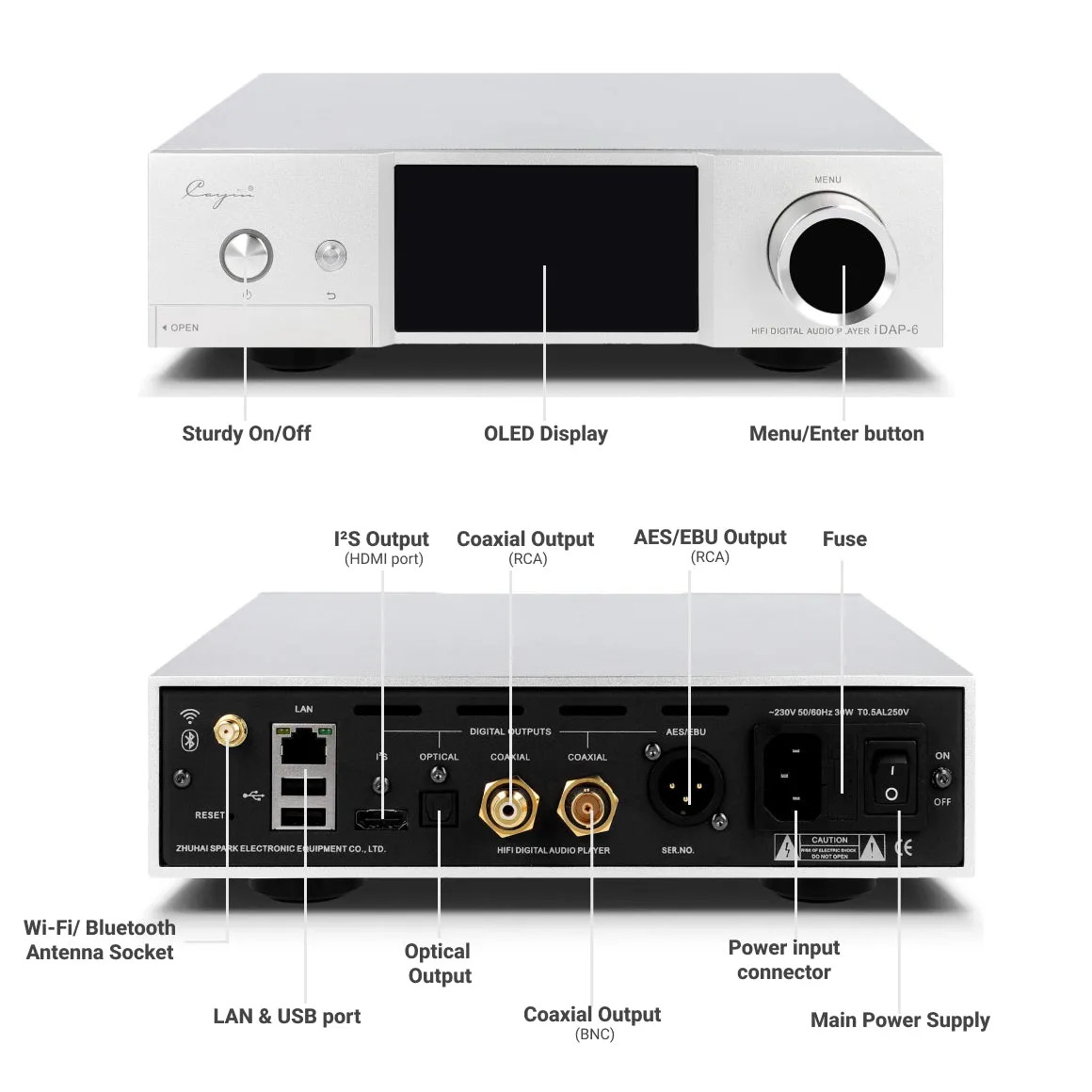

The iDAP6 has three USB Audio output or USB storage. Along with the regular RCA (coaxial) and Toslink (optical) comes the professionally used applications BNC (coaxial)

Comprehensive and Technically advanced

The iDAP6 comes with AES/EBU which is recommended by studio professionals and is the most reliable digital interface. The best alternative lower jitter, delivered through HDIM as high quality cables-I2S which is the native digital audio for signal transmission.

Access

You can connect your iDAP-6 with your phone via Bluetooth as it supports HiByLink. You can even control playback of iDAP-6 remotely through a touch screen graphical interface. You can also share files, mobile app will read the file headers and facilitate features which is originally not available like searching, playlists, file management etc. It is compatible with off-the-shelf Bluetooth remote control.

All-New UI Design

The iDAP-6 is designed with the All-New UI design for the music playback. It is intuitive, visible, comprehensive and self-explained. It has multi-layered to best-fit the 3.95" AMOLED screen. All information are well organized and are properly presented.

Multi-Function Knob

With the knob on the iDAP-6 you can easily control all features. Rotate left and right to browse and press enter to select your choice.

Dual Bluetooth 4.1

The iDAP-6 can be used as wireless digital transport or playback to Bluetooth headphones. You just have to accept audio signal form the paired device and it can function as a wireless interface to a sound system.

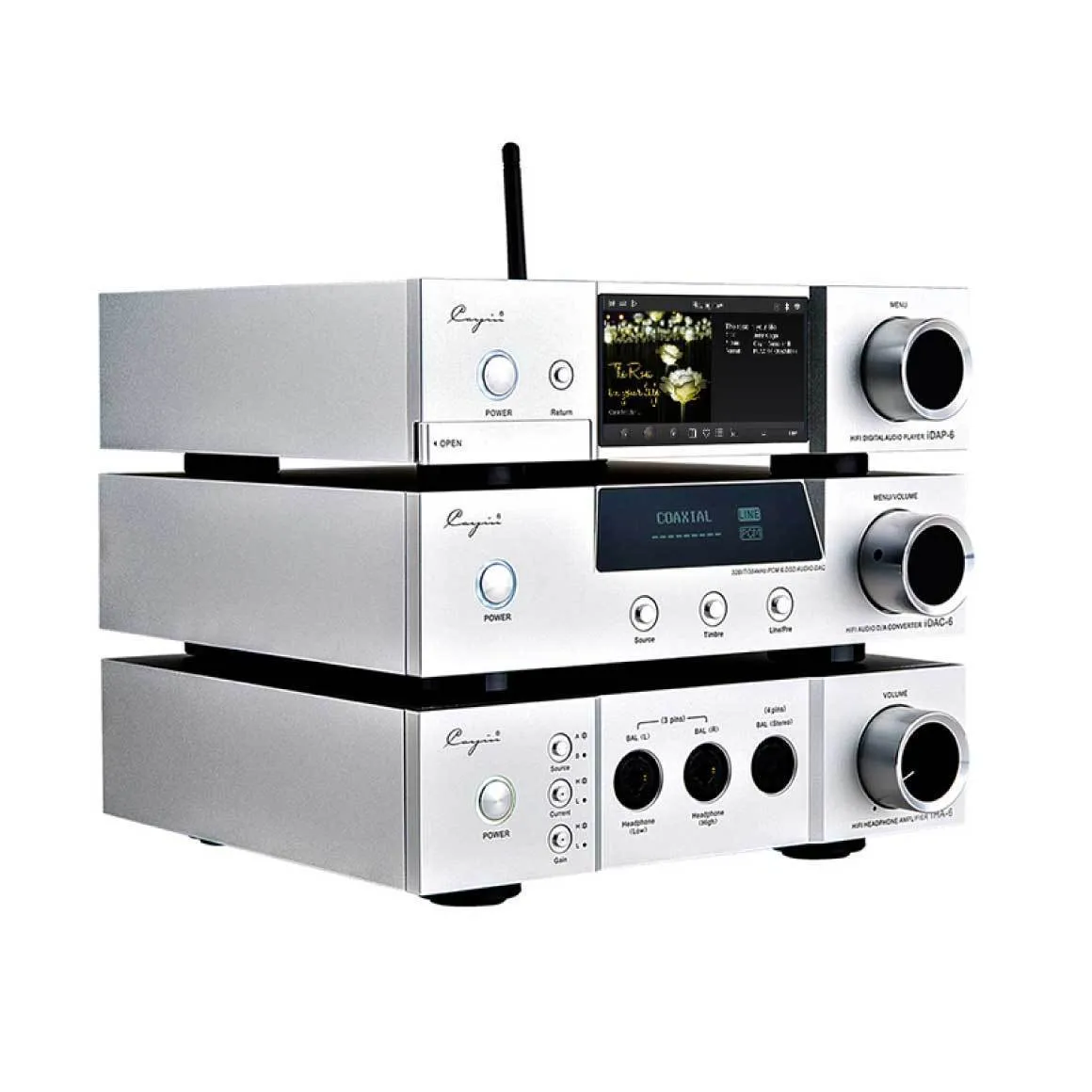

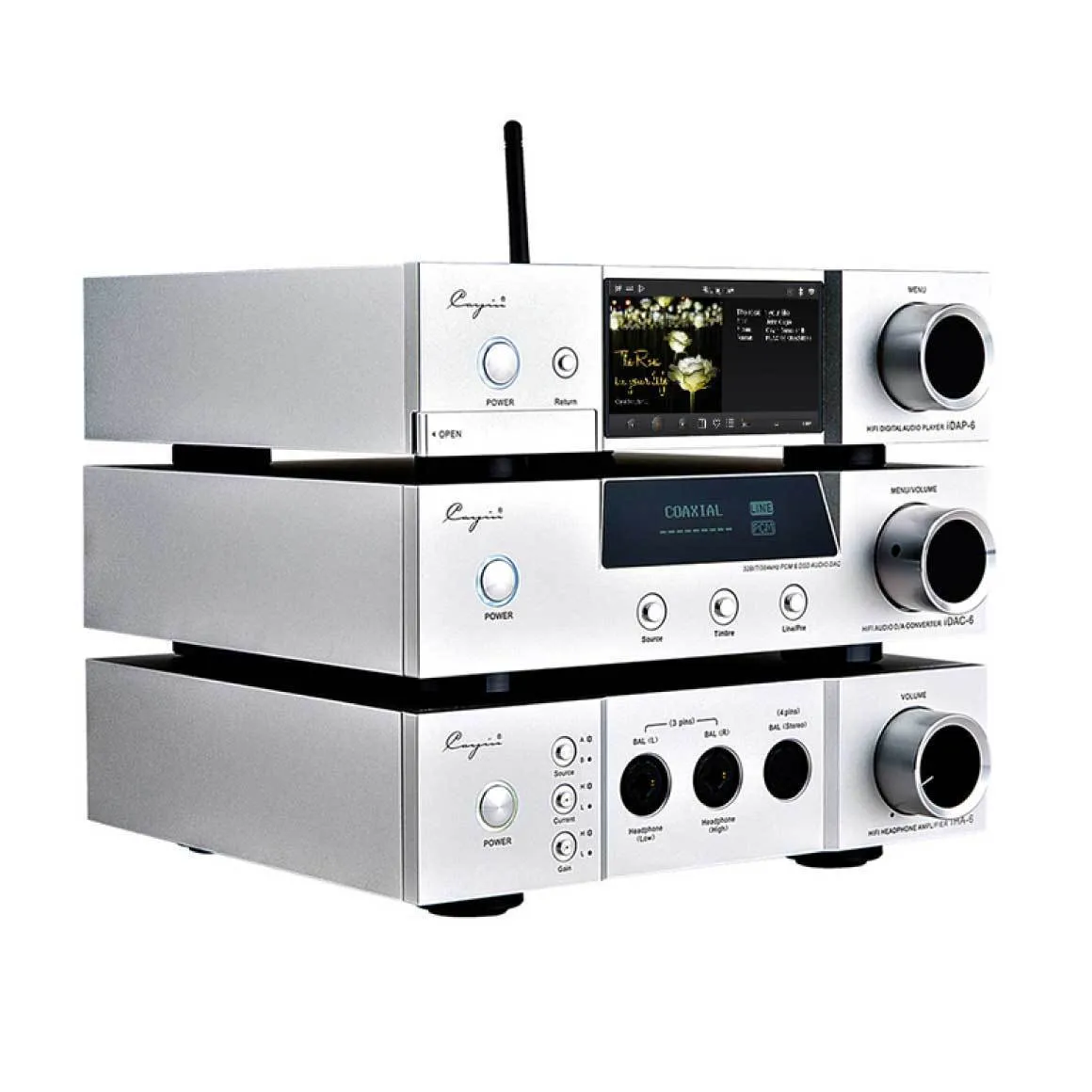

The i-Series Family

The i-Series has almost the same look and feel with matching material and finishing. The iDAC-6, iHA-6 and iDAP-6 can be used as complete Desktop Trio system or you can mix and match them with different audio equipments.

Hardware Highlights

Two extremely low-noise high-precision Femtosecond Crystal Oscilallators with RMS jitter below 0.1ps@10hz-1MHz and phase noise below -166dBc/Hz@1MHz offset. High precision low jitter digital transmission is the base of high quality digital playback. It is how we deliver a natural, non-digital and musical sound to your audio system. They designed and manufactured the toroidal transformers in-house. It is securely shielded and will provide low-noise, high efficient power for iDAP-6 circuit. They use NICHICON electrolytic capacitors from Japan in their power supply circuit. This improves the transparency of the system, and display the detail and layering effortlessly.

SPECS

AUDIO SPECIFICATIONS

SUPPORTED OUTPUT	USB, I2S OUT, AES/EBU, Coaxial
BLUETOOTH CONNECTIVITY	Bluetooth v4.1 (aptX)
SCREEN	3.95" AMOLED
POWER	< 20W
SUPPORTED STORAGE	2.5" HDD(upto 2 TB) SD Card(upto 256 GB), Thumb Drive, Card Reader
STANDBY	≤2W
DIMENSIONS	240 X 268 X 69mm
WEIGHT	~3.3kg
USB AUDIO OUT	Support: up to 32Bit/384kHz, DoP128 User selectable DoP and D2P Output will Always set to 24Bit/88.2kHz
I²S OUT	Support: up to 32Bit/384kHz, DSD256 Compatibility: HDMI Implementation of I²S is not an industrial standard, we cannot guarantee compatible with other I²S Device. cayin will Develop DAC with I²S interface in future.
AES/EBU OUT	Output Level: 2.0V p-p (unloaded), 1.0V p-p (110 Ω loaded) Output Impedance : 110 Ω Support: up to 24Bit/192kHz DoP64
COAXIAL OUT	Output Level: 1.0V p-p (unloaded), 0.5V p-p (75 Ω loaded) Output Impedance : 75 Ω Support: up to 24Bit/192kHz , DoP64
OPTICAL OUT	Support: up to 24Bit/176.4kHz , DoP64
BLUETOOTH AUDIO	Output: 16Bit/44.1kHz, Codec: SBC, apt-X Input:16Bit/44.1kHz , 16Bit/48kHz, Codec: SBC

IN THE BOX

BOX CONTENTS

Cayin - iDAP-6

WARRANTY

Don’t sweat it, This Cayin product is covered by a 1 Year manufacturer's warranty.

MEDIA REVIEWS

"The iDAP-6 is a quality built product that completes and extends the range and capability of the Cayin i-Series desktop components for headphone users."

"I feel that the iDAP-6 is an integral part getting this system performing at such a high level. It's a perfect match, but more importantly it just sounds better than most other transports out there."
