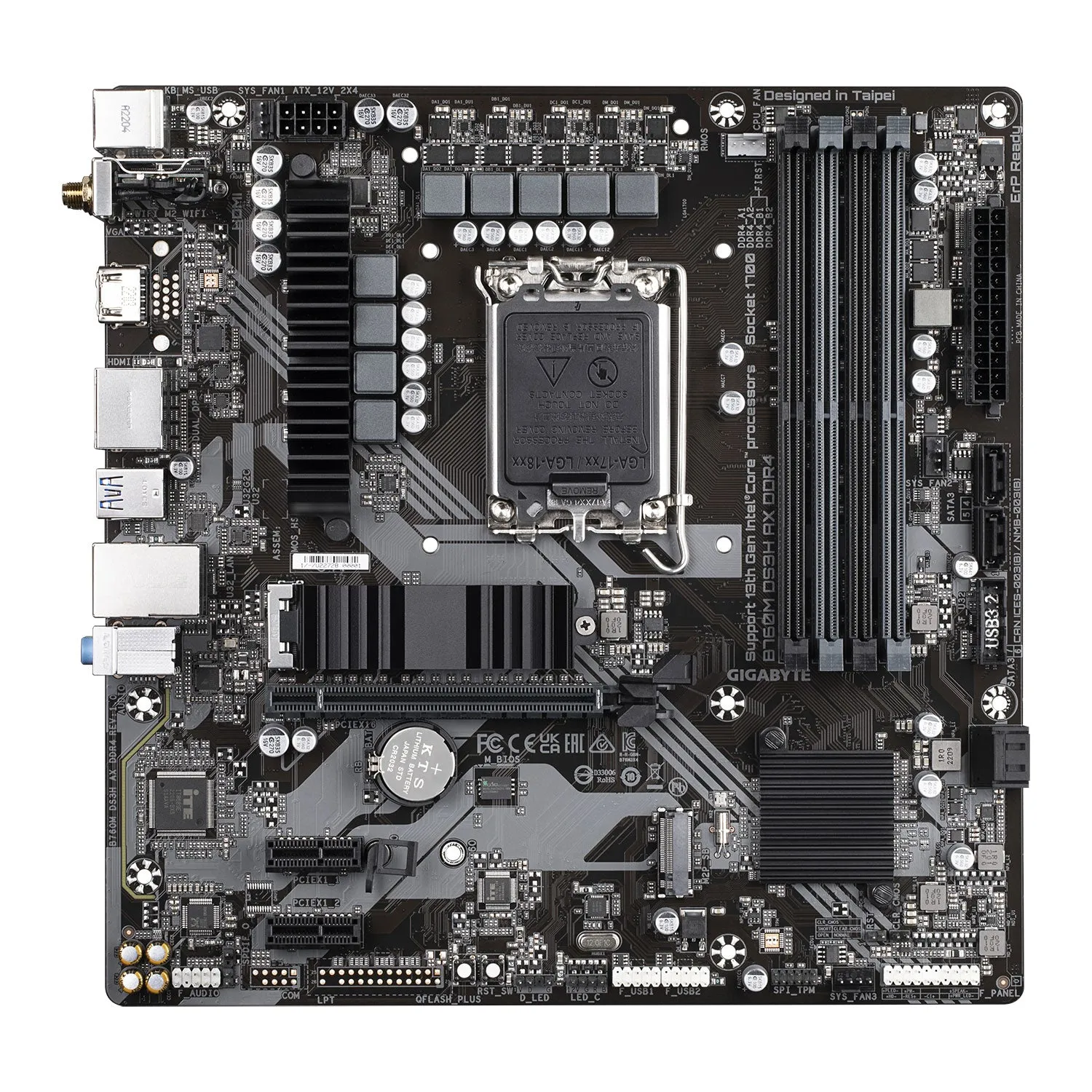

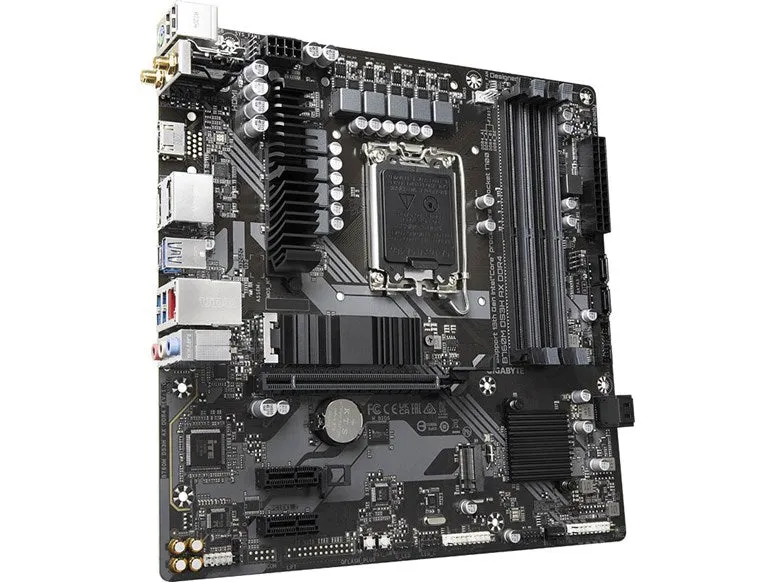

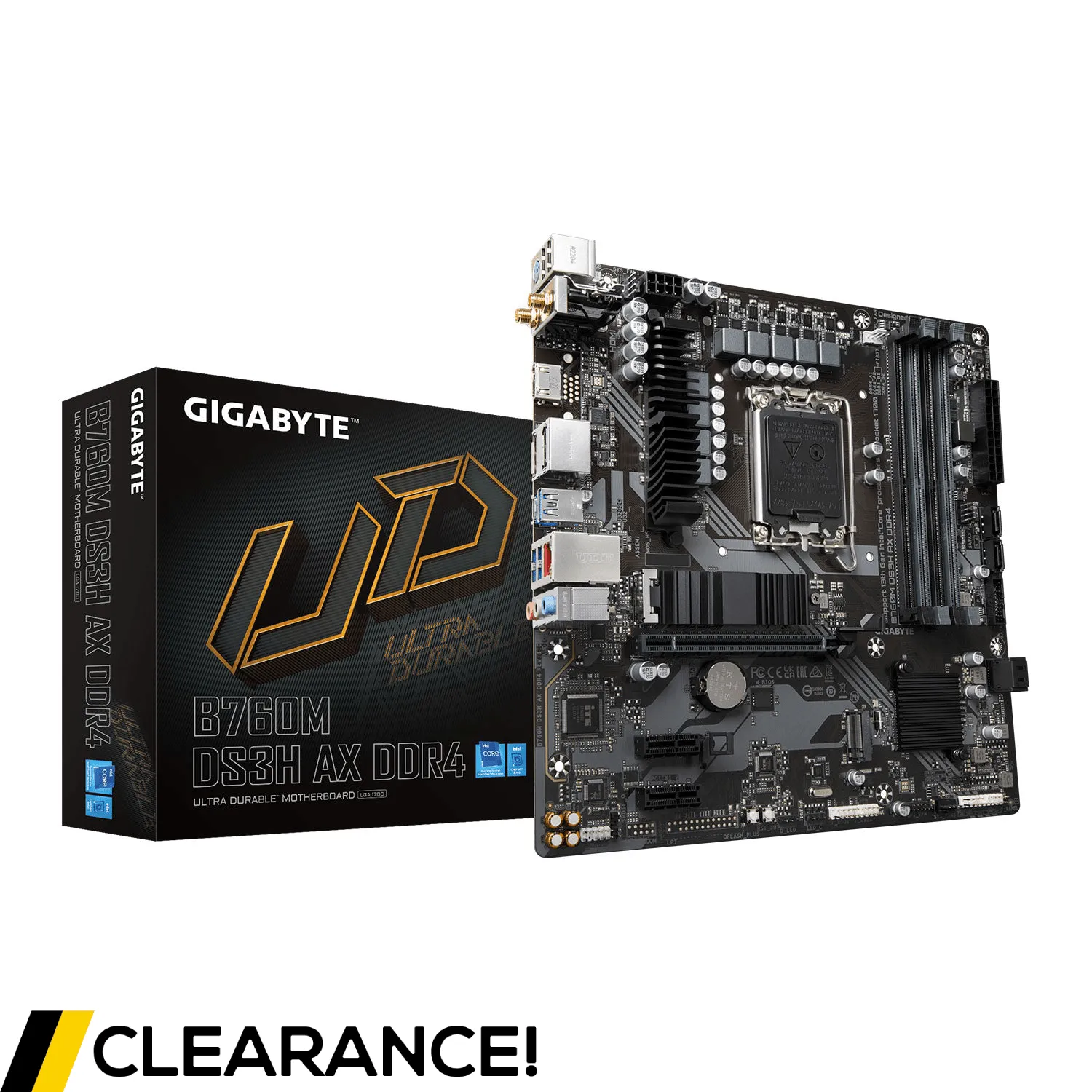

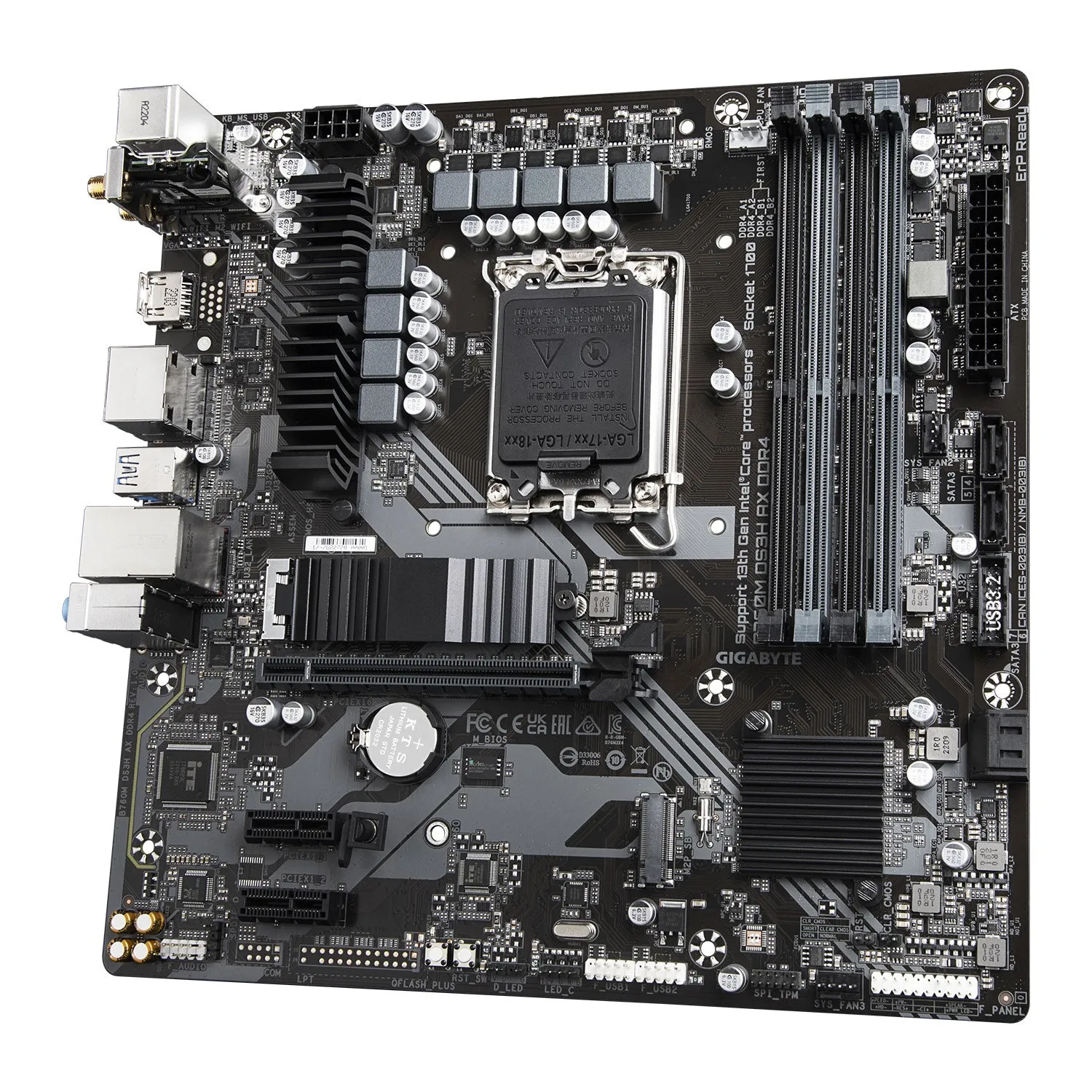

Product Details
＋
| CPU | Supports 12th/13th Gen Intel Core Processors Pentium Gold and Celeron Processors |
| Chipset | Intel B760 |
| Memory | 4x DDR4 memory slots, supports up to 128GB at 3200Mhz upto 5333MHz (OC) Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics Outputs | 1 x HDMI port 2 x DP |
| PCI Slots | CPU: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage | Total supports 2x M.2 slots and 4 x SATA 6Gb/s ports CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| Networking | 1x Realtek 2.5Gbps LAN controller WIFI6E Bluetooth |
| Audio | 7.1 HD Audio with Audio Boost |

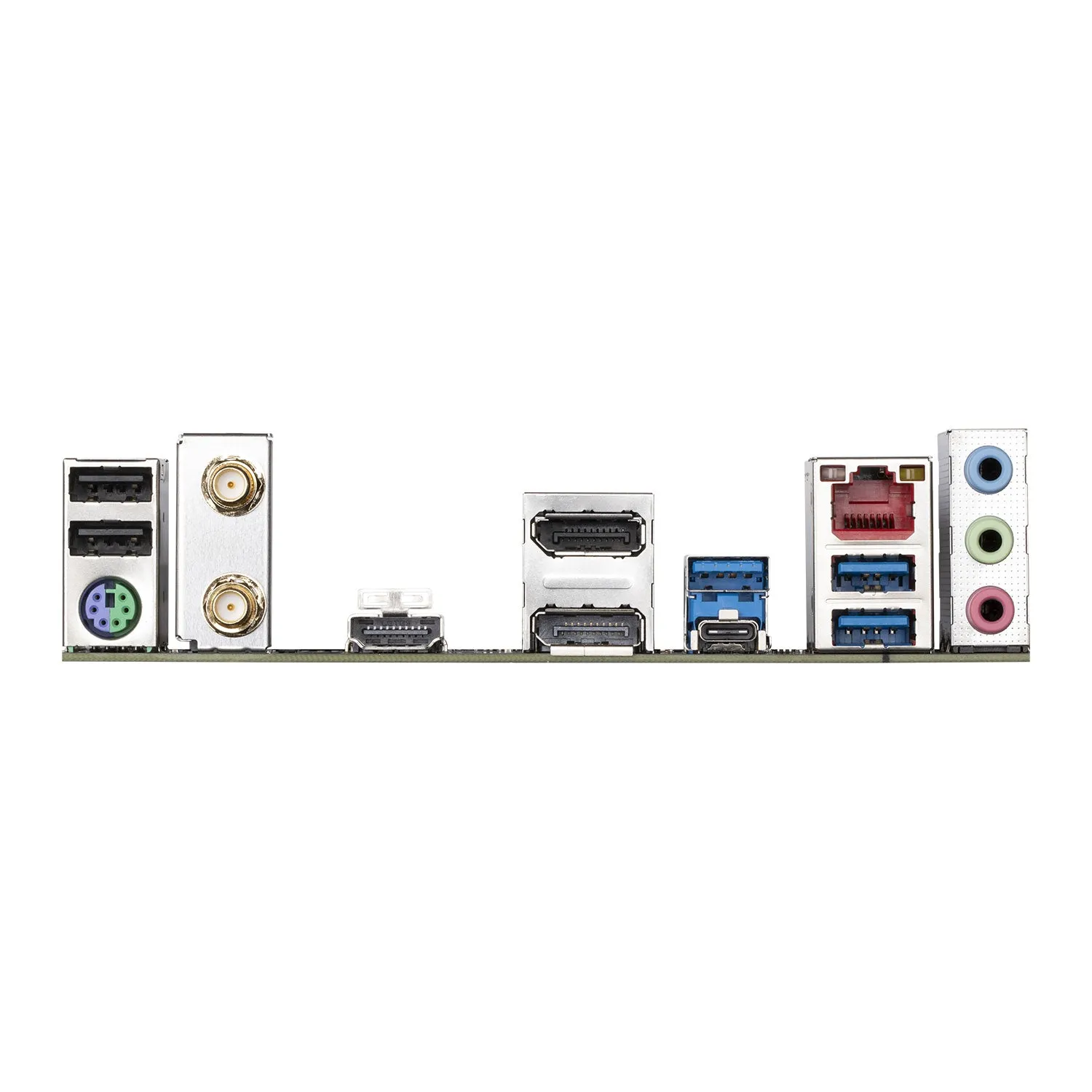

| Connectivity | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | Three Year Manufacturer Warranty |
