Product Details
＋

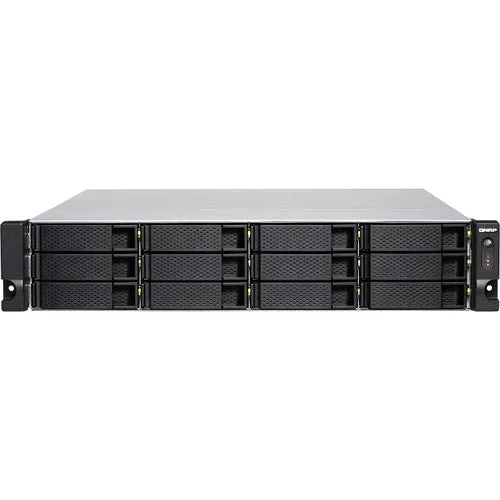

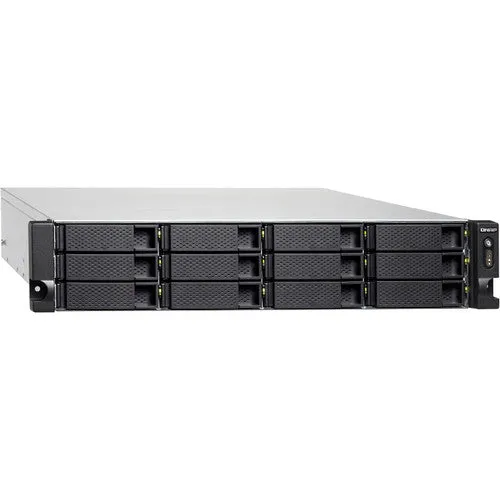

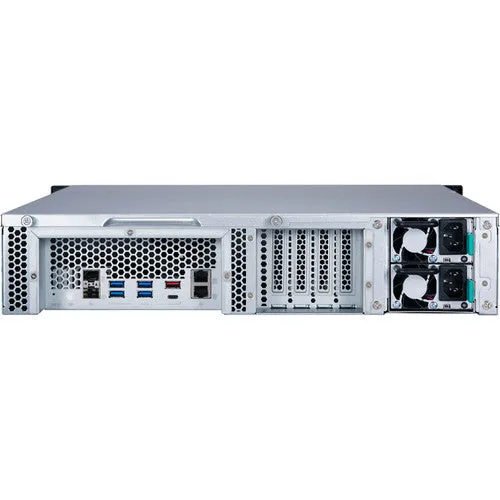

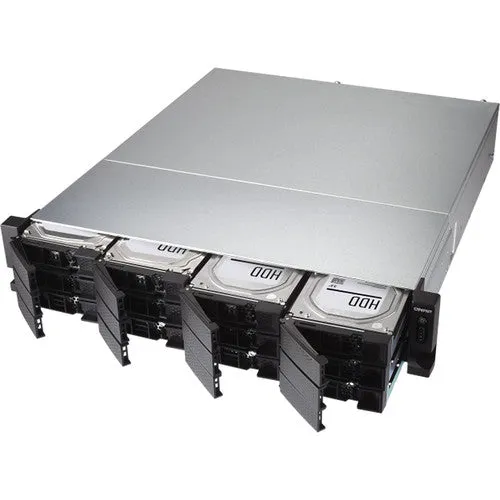

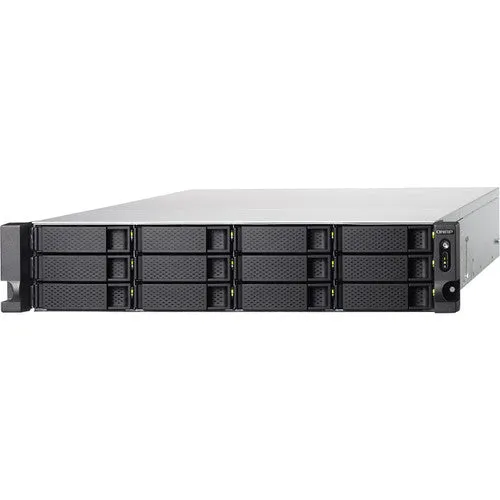

QNAP TS-H1277XU External HDD/SSD Specs
Computing
| CPU | 3.6 to 4.4 GHz 8-Core |
| Processor | AMD Ryzen 7 3700X |
| Total Installed Memory | 128 GB DDR4 |
| User-Replaceable Memory | 4 x 32 GB |
| Total Memory Slots | 4 x DIMM |
| Maximum Memory Capacity | 128 GB |
| Flash Memory | 5 GB |
General
| Number of Bays | 12 x 2.5"/3.5" |
| I/O | 2 x RJ45 (Gigabit Ethernet) 2 x RJ45 (10GbE) 2 x SFP (10GbE) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s)) 1 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s)) 1 x USB-C (USB 3.1/3.2 Gen 2 (10 Gb/s)) |
| Compatible Drive Interface | SATA II, SATA III |
| Media Card Slots | None |
| Form Factor | Rackmount (2 RU) |
| RAID | RAID 0, 1, 10, 5, 50, 6, 60 |
| Hot-Swap Support | Yes |
| PCI Expansion | 2 x PCIe 3.0 (x4 Electrical) 1 x PCIe 3.0 (x8 Electrical) 1 x PCIe 3.0 (x8 Electrical, Occupied) |
| Wake on LAN | Yes |
Networking
| Supported Protocols | AFP CIFS/SMB FTP FTPS FXP HTTP HTTPS IPv4 IPv6 L2TP/IPSec MPIO NFS OpenVPN PPTP Proxy Rsync SAN SFTP SMSC SMTP SNMP SSL Syslog TFTP Telnet WebDAV iSCSI |
| Max Concurrent Connections | 700 |
Software
| Installed Operating System | QTS 4 5.0 |
| Supported File Systems | Internal: ZFS |
| OS Compatibility | macOS 10.10 or Later Ubuntu 14.4 or Later CentOS 7 or Later Windows 7 or Later Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 *As of July, 2021: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers | Chrome, Firefox, Internet Explorer, Safari |
| Supported Languages | Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish |
Security
| Encryption | AES-NI |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | Internal Power Supply |
| Power Consumption | 106.66 W (Typical) |
| PSU Wattage | 2 x 300 W |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 5 to 95% (Non-Condensing) |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
Physical
| Status Monitoring | LED Indicator |
| Audible Alarm | Yes |
| Cooling | 2 x 70 mm Fans |
| Noise Level | 37.2 dBA |
| Built-In Speakers | None |
| IR Sensor | None |
| Dimensions | 22.13 x 18.98 x 3.48" / 56.21 x 48.21 x 8.84 cm |
| Weight | 30.3 lb / 13.7 kg |
Packaging Info
| Package Weight | 35.205 lb |
| Box Dimensions (LxWxH) | 28.2 x 22.9 x 10.7" |
