Product Details

The SPO12-TACL two-post lift is perfect for shops with lower-height ceiling bays. With an overall height of only 11.8”, it only requires an extra inch of ceiling height.

You can’t find a better-designed and better-engineered 12,000-pound two-post lift. Due to its size, the SPO12 gives techs a feeling of even greater safety when they’re under a vehicle while also giving them a little more space between the columns. Its size and larger footprint make it optimal for shops with larger bays and work on taller, heavier vehicles. And that’s why it’s chosen by more dealers and independent repair shops than any other lift in its category.

Shockwave (Optional)
Rotary Lift’s exclusive Shockwave technology produces rises and descends twice as fast as standard lifts. This is possible thanks to technologies, including its patent-pending DC power system.

Spotline™ Motion-Activated Laser
Installed on the overhead bar, our Spotline technology projects a straight green line into the middle of the vehicle service area. By lining up the center of the vehicle with Spotline, there’s no need for another tech to help spot a vehicle driving into the bay.

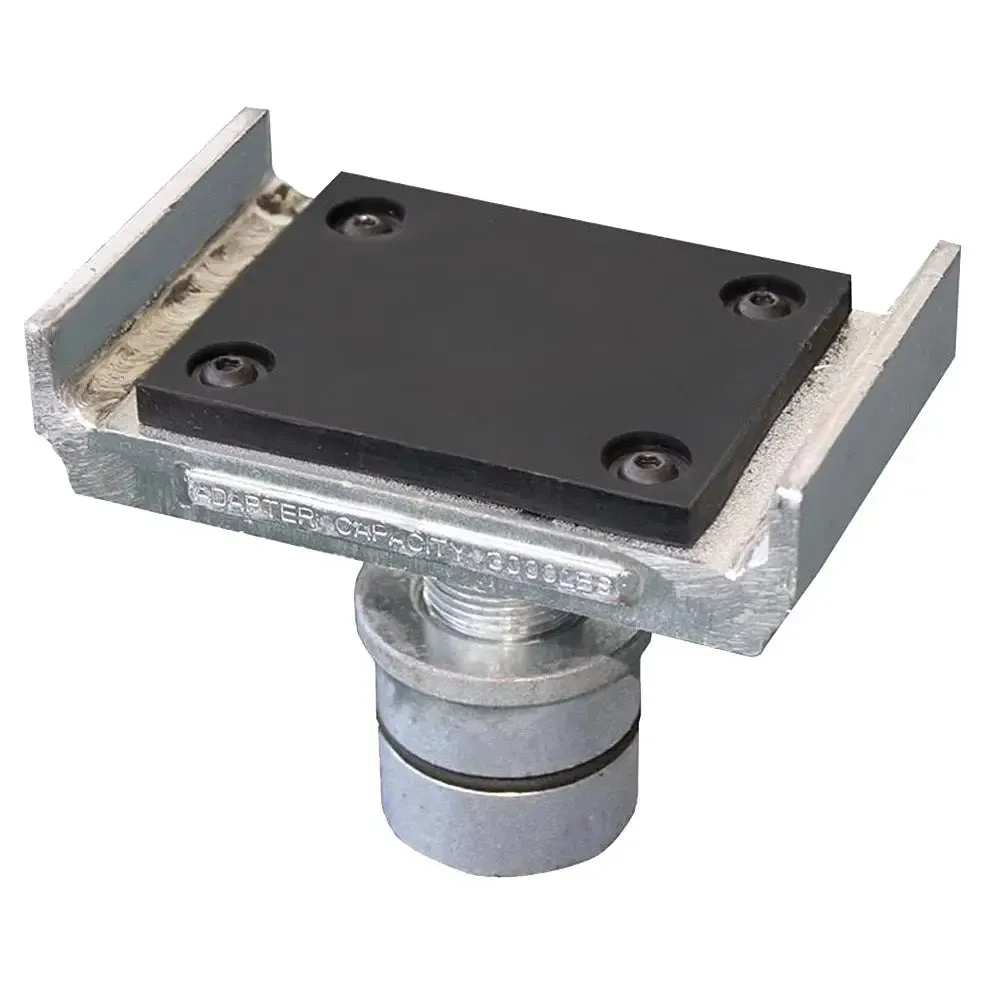

Customizable Adapters
Configure the SPO12 to your needs with customizable adapters: round, extensions, and thread-up adapters for trucks.


Features:

  • True symmetrical, single-piece “Double S” columns
  • Standard front & rear three-stage arms
  • Truck adapters with stackable inserts for added reach
  • Available in alternate height configurations to fit your shop’s needs
  • Available with Shockwave™
  • ALI Gold Certified

Specs:

Capacity: 12,000 lbs.
Rise: 72-3/4in ~ 75-1/4in
Height Extension: N/A
Overall Height: 11ft 8in
Required Ceiling Height: 11.9in
Overall Width: 11ft 5-5/8in
Drive-Thru Width: 8ft 6-3/8in
Front Arm Min/Max: 27-1/2in-59in
Rear Arm Min/Max: 27-1/2in-59in
Min. Adapter Height: 4-3/4in
Time of Full Rise: 60 secs.
Min. Bay Size: 12ft x 26ft

Requirement:
 - Motor: 2 HP
 - Voltage: 208V-230V

SHOCKWAVE (Optional)
Rise: 75-3/4in ~ 78-1/4in
Motor: 5 HP
Voltage: 110V
Time of Full Rise: 25 sec

Includes:

4 x FJ6197 - Thread Up Truck Adapters - 3 Stage Arms

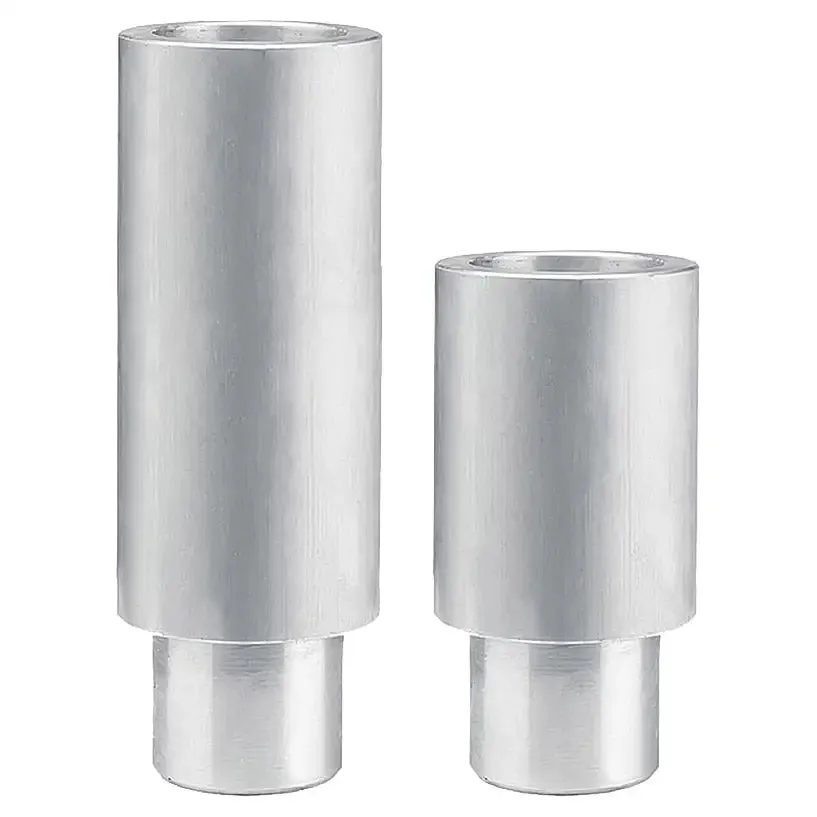

4 x FJ6171-1 - 3.5" tall extension
4 x FJ6171-2 - 5" tall extension
1 x FJ6127 rack kit with mounting hardware

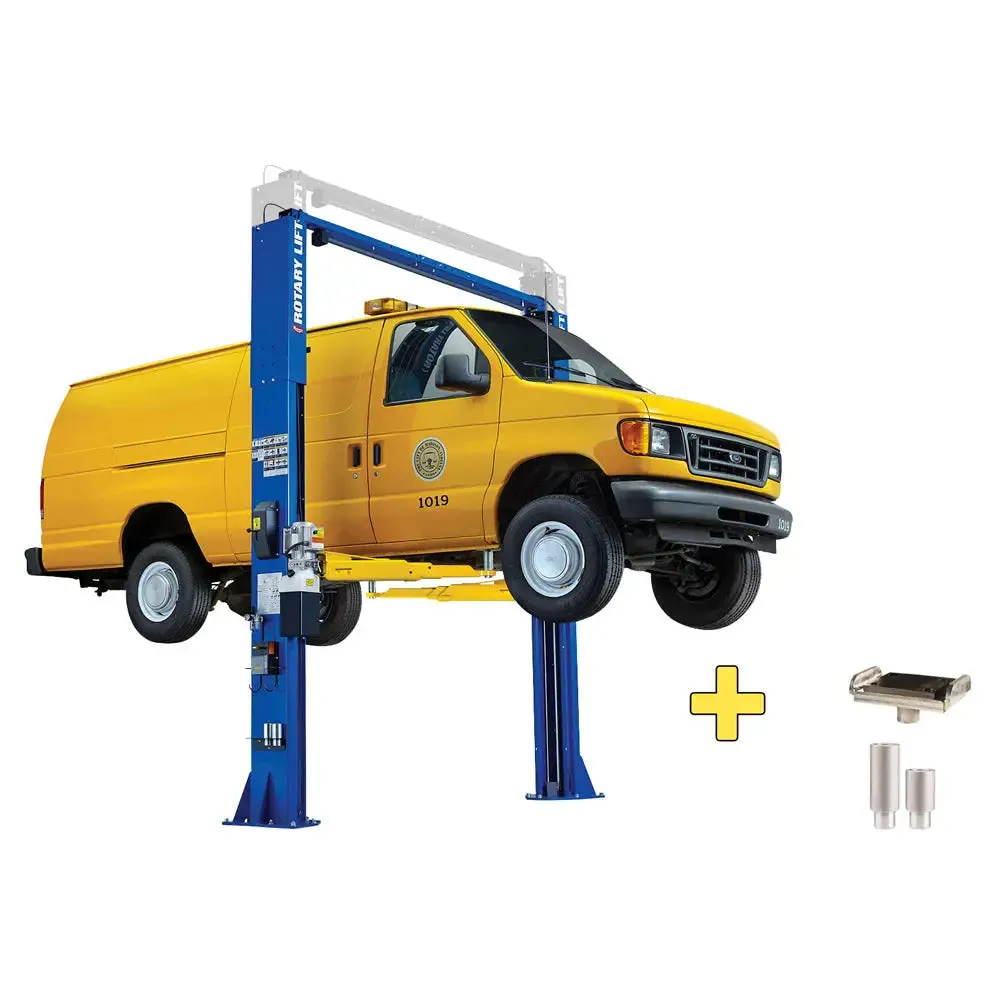

Rotary SPO12-TACL 12K Two-Post Symmetrical Lift, Low Ceiling
  • Blue
  • Red

$ 59.77

$ 45.98

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
