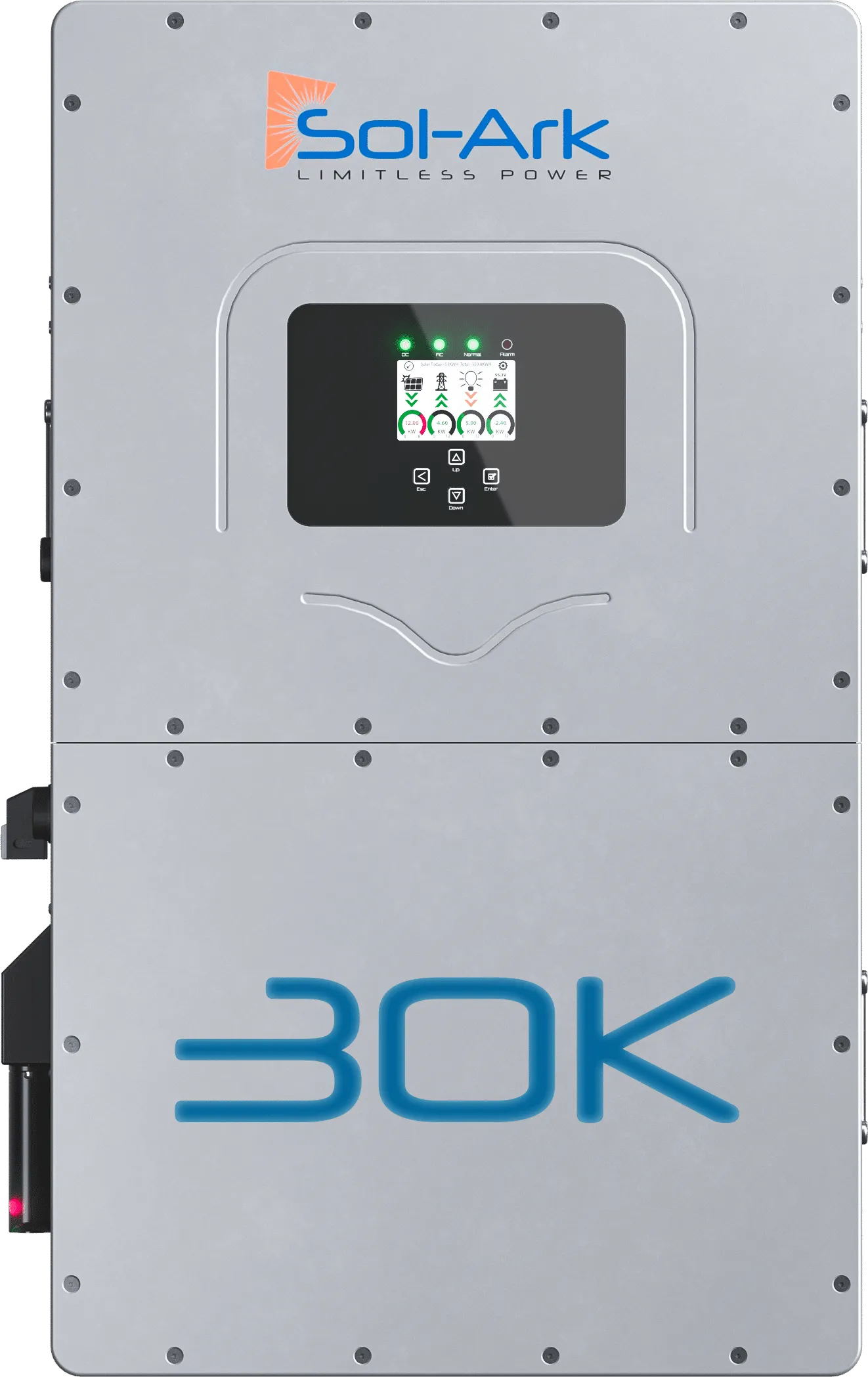

Sol-Ark® 30K-3P-208V Commercial Hybrid Inverter
Sol-Ark revolutionary commercial hybrid inverters simplify adding storage to commercial buildings. The Sol-Ark 30K provides native 208V three-phase electricity out-of-box, and the Sol-Ark 60K is 480V. Both include a microgrid controller, allowing savings to be optimized when grid connected and automatically isolated during power outages.
Both the 30K and 60K are stackable to 10 units of high voltage battery bank options, increasing project size and site flexibility. A multi-use port provides flexible interconnect to a variety of devices, including AC coupling, EV chargers, generator, or outdoor service panels.
30K-3P Commercial Inverter Features & Benefits
- AC & DC Coupling Capability: Supports both AC and DC coupling, enabling seamless integration with existing solar PV systems and new arrays that simplify commercial installations.
- Modular & Scalable Energy: Modular and flexible design allowing for easy expansion from 30kW to 300kW to accommodate growing energy needs; up to 10 inverters in parallel 16 batteries per inverter.
- Seamless Backup Power: Provides reliable blazing fast 5ms transfer and backup power during grid outages, ensuring business continuity; 200A grid pass-through for simple grid-tied and backup applications.
- Easy Installation without the Transformer for Light Commercial: Native 120/208V 3 phase output simplifies installation for most light commercial buildings.
Whole Site Backup: 200A-2000A
400A-208V Backup 600A-208V Backup 800A-208V Backup
Sol-Ark Commercial Energy Solutions are Flexible, Scalable, and Purpose-Built to Solve Complex Energy Challenges for Key Industry Verticals
Sol-Ark® commercial hybrid inverters and lithium battery energy storage systems (BESS) are designed to meet the energy needs of various industries. Our commercial energy storage solutions help to create energy resilience, drive and enable company decarbonization goals, and lower energy costs and improve efficiency. Sol-Ark's industries:
- Data Centers
- Telecommunications
- Oil & Gas
- Military
- Pharmaceutical
- Industrial Automation
- Big Box Retail
- Financial Institutions
- Pharmacies
- Gas Stations
- Restaurants
- Education
- Agriculture
- Disaster Relief
- Zero Energy Home
Reduce Energy Cost, Simplify Installation and Decarbonize:
- Reduce Demand Charges with Peak Shaving: The Sol-Ark® 30K-3P-208V commercial hybrid inverter is a powerful and versatile commercial energy storage solution specifically designed for light commercial and industrial businesses. It helps commercial building owners reduce high demand charges by optimizing solar energy usage, shaving peak demand charges, and participating in grid services programs for additional revenue.
- Simplify and Lower Installation Cost: Enable seamless integration, simplify installations, and lower installation cost with its AC and DC coupling capability to existing solar photovoltaic (PV) arrays or new arrays. The native 120/208V 3 phase output helps reduce installation complexity for most light commercial businesses. With its modular and flexible design, it allows businesses to easily expand solar power generation from 30kW up to 300kW to meet growing business energy needs and demands.
- Meet Sustainability Goals: Enjoy seamless 5ms transfer and backup power during grid outages, ensuring business continuity. Not only will you meet critical corporate renewable energy goals to help drive sustainability efforts, but with MySol-Ark advanced controls and monitoring, your business can monitor in real-time for optimal system performance and fleet management. Standard 10-year warranty.
Sol-Ark’s GUI. Simple to Program. Solving Complex Energy Challenges
Monitor and Manage Your Energy from Anywhere
- Automate business backup
- Optimize demand response with Peak Shaving
- Analyze how much energy was made, used, stored and sold back to the grid
- Check the health of the battery
- Remote commissioning and settings adjustment
Case Studies
- Costco Wholesale:
- San Fransisco Nursery:
- Pinder Tile:
Warranty:
- 10 Years
Whats Included:
- 1x Sol-Ark® 30K-3P-208V Commercial Hybrid Inverter
- 1x French cleat
- 4x M12x60mm expanding anchors
- 9x M4x12mm screws
- 1x CAT 5E communication cable
- 1x Wi-Fi / Ethernet antenna (dongle)
- 1x 3mm L-type hex key for front panel screws
- 1x 8mm T-type hex key for AC terminals
- 3x 300A (Ø2”) Current transformers (CT sensors)
- 1x User manual
Specifications:
| Brand | Sol-Ark |
| Model | SA-30K-3P |
| Input Data (PV) |
Max. Allowed PV Power (STC): 39,000W MPPT Voltage Range: 150-500V Startup Voltage: 180V Max. Input Voltage¹: 550V Max. operating input current per MPPT: 36A Max. short circuit current per MPPT: 55A No. of MPP Trackers: 4 No. of PV Strings per MPPT: 2 Max. AC Coupled Input Power: 30,000W |
| Output Data (AC) |
Nominal AC Voltage (3Φ): 120/208V Grid Frequency: 50 / 60Hz Real Power, max continuous (3Φ): 30,000W Max. Output Current: 83.4A Peak Apparent Power (10s, off-grid, 3Φ): 45,000VA Max. Grid Passthrough Current (10min): 200A Continuous Grid Passthrough Current: 180A Power Factor Output Range: /- 0.8 adjustable Backup Transfer Time: 5ms (adjustable) CEC Efficiency: 96.5% Max Efficiency: 97.5% Design (DC to AC): Transformerless DC Stackable: Up to 10 in parallel |
| Battery Input Data (DC) |
Battery Chemistry: Lithium-ion No. of Battery Inputs: 2 Battery Input Terminal Rating: 50A Nominal DC Voltage: ≥300V Operating Voltage Range: 160 - 500V Battery Capacity Range: 50 — 9900Ah Max. Battery Charge / Discharge Current: 100A (50A per input) Charge Controller Type: CC/CV - BMS Controlled Grid to Battery Charging Efficiency: 96.0% Automatic Generator Start (AGS): 2 Wire Start - Integrated BMS Communication²: CAN (Controller Area Network) |
| General Data |
Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in) Weight: 80 Kg / 176 lb. Enclosure: IP65 / NEMA 3R Operating Temperature: -40 – 60°C, >45°C Derating Noise Level: < 30 dB @ 25°C (77°F) Idle Consumption - No Load: 60W Communication and Monitoring: Wi-Fi & LAN Hardware Included Warranty: 10 Years |
| Protection and Certifications |
Certifications and Listings (Grid Support Interactive Inverter): UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP PV DC Disconnect Switch — NEC 240.15: Integrated Ground Fault Detection — NEC 690.5: Integrated PV Rapid Shutdown Control — NEC 690.12: Integrated PV Arc Fault Detection — NEC 690.11: Integrated PV Input Lightning Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Surge Protection: DC Type II / AC Type III |
| Note |
1. See Installation Guide for more details on sizing array strings. The highest input voltage is based on the open-circuit voltage of the array at the minimum design temperature. 2. Active BMS communication is required for all lithium batteries. A list of compatible battery partners can be found on our website. |
| Resources |
|
