DESCRIPTION:
Speed. Achieved.
The ThunderRAID 3 Mini SSD is the most complete 12Gb/s SAS 6-bay Thunderbolt™ 3 desktop SAS/SATA RAID storage with RAID control capabilities solution for both PC and Mac. The ThunderRAID 3 Mini SSD incorporated on-board RAID-On-Chip and ECC SDRAM memory to deliver true high performance hardware RAID protection against drive failure. This combination helps to provide a high performance storage device perfect for the video editor working with Real time multi-stream HD and 4K workflows.
Thunderbolt™ 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device. The ThunderRAID 3 Mini SSD is equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals. Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect Multiple ThunderRAID 3 Mini SSD's for massive amounts of video storage with a single Thunderbolt connection to their host computer.
FEATURES:
- High performance 40Gbps Thunderbolt 3 interface
- Support simultaneous 4K in/output workflow
- Dual Thunderbolt 3 ports for daisy-chaining
- EFI supported for macOS multi-boot
- Intelligent power On/Off function for data integrity
- Delivers enterprise-class data protection and securitty
- Advanced configuration for video optimized performance settings
- Configuration by the Thunderbolt/LAN port/LCD
- Controller-level hardware encryption
SPECIFICATIONS:
Form Factor:
- Desktop 6-Bay (2.5 inch drives)
Disk Support:
- 12Gb/s SAS/SSD
- 6Gb/s SAS/SATA/SSD
Disk Port:
- 6 x 12Gb/s SAS
RAID-on-Chip:
- 12G SAS dual-core controller @ 1.2 GHz
Onboard Cache:
- 2GB DDR3-1866
Expansion Support:
- SFF-8644 (2-lanes)
Cooling Fan:
- 1 x 2700rpm
Power Supply:
- 135w
Physical Dimensions:
- 4.84 Width
- 6.51 Height
- 9.11 Depth
Weight:
- 8.0 lbs / 3.6 Kg
DC IN:
- 4-pin XLR

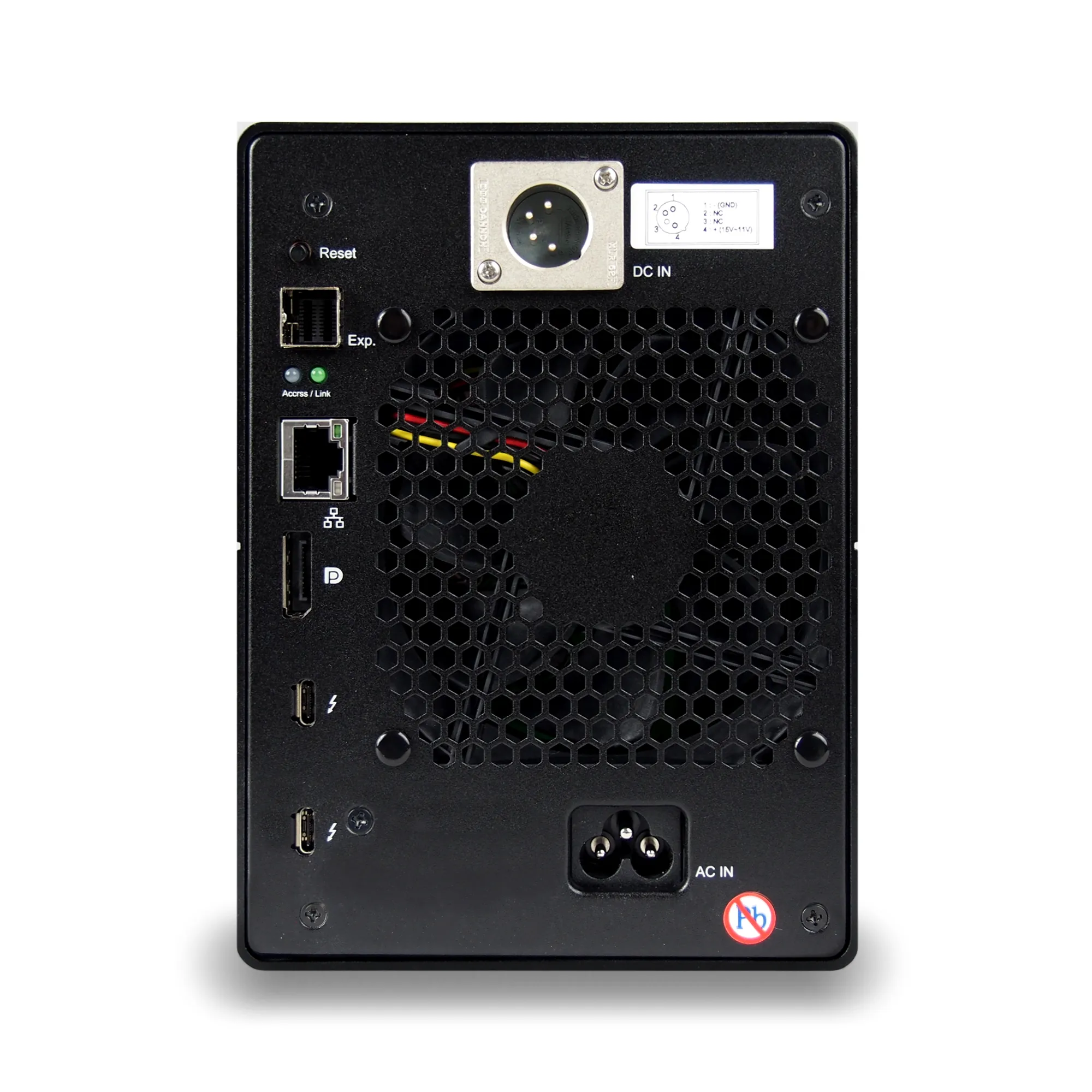

Connection:
-
2x Thunderbolt 3
- 1x Display Port
OS Support:
- Mac OS X 10.12 or higher
- Windows 8/10 or higher (install drivers first)
INCLUDED:
- (1) ThunderRAID 3 Mini SSD
- (1) Power Cord
